again, lies along the “plus-axis” meridian (i.e.,      The surface powers of the lens are
          the meridian which produces against rotation        (+3.00 DC x 90 / +7.00 DC x 180) / -11.00 DS
          of a crossline limb). The power of the cylinder
          may also be written, 5.00 DS/+5.00 DC x 180.           The thin edge subs. lies at the extremity of
          This rule should be noted for circular astigmatic   the vertical meridian.
          lenses: the plus axis of a cylindrical or toric lens   The thick edge subs. = Sag 11.00 @ 50 minus
          represents the meridian of greatest thickness.      Sag 3.00 @ 50 plus the centre subs.
          In the case of a toric lens, the sags along the
          base curve and cross curve meridians must be           The centre subs. = thin edge subs. minus (Sag
          calculated together with the sag of the spherical   11.00 @ 40 - Sag 7.00 @ 40)
          surface as shown in Example (ii) below.                So the centre subs. = 3 - (4.42 - 2.73) = 1.31mm.
          EXAMPLES:                                           and the thick edge subs. = 7.1 - 1.8 + 1.31 = 6.61mm.
                                                              REFERENCES
             (i) The lens +3.00 DS / +3.00 DC x 60 is made
          up as a 40 round eye with a thin edge substance     1.  Jalie M (2021), Principles of Ophthalmic
          of 2mm.                                                Lenses (6  Ed.) ABDO, Godmersham.
                                                                          th
                If the lens is made as a plano convex toric
          calculate the thick edge substance. (Assume the
          use of crown glass, n = 1.523).

             The front surface power of the lens is: +3.00
          DC x 150 / +6.00 DC x 60. The back surface power
          is zero.
             The thin edge lies at the extremity of the 150
          meridian. The thick edge is the centre substance
          minus Sag 3.00 @ 40mm aperture. The centre
          subs is the thin edge subs + Sag 6.00 @ 40mm
          aperture.

             So the centre subs, t  = 2 + 2.33mm = 4.33mm.
                                 C
             The thick edge subs = 4.33 - 1.15mm = 3.18mm.

             (ii) Find the thick-edge substance of the lens:
          -8.00 DS / +4.00 DC x 180 made up as a 50 x 40
          oval shape with a thin edge substance of 3mm
          in toric form with a +3.00 D base curve.

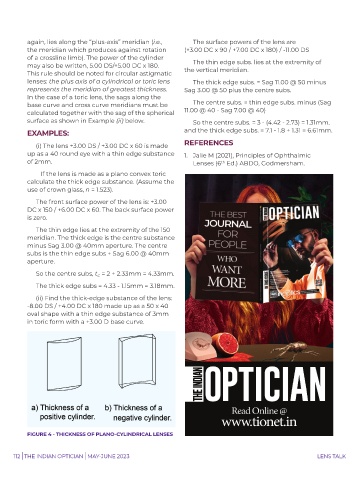

          FIGURE 4 - THICKNESS OF PLANO-CYLINDRICAL LENSES
